Against the backdrop of SMT production lines evolving toward high-mix, low-volume manufacturing, the stability and accuracy of the splicing process have become critical factors affecting overall line efficiency.

On typical SMT shop floors, tape splicing has long relied on manual operations. Operators are required to cut, align, and splice carrier tapes of different specifications, which not only depends heavily on skill level but also leads to efficiency fluctuations during frequent product changeovers. This is particularly evident in production environments where 8 mm to 24 mm tapes are mixed, as repeated manual intervention makes it difficult to maintain consistent cycle time and splicing quality.

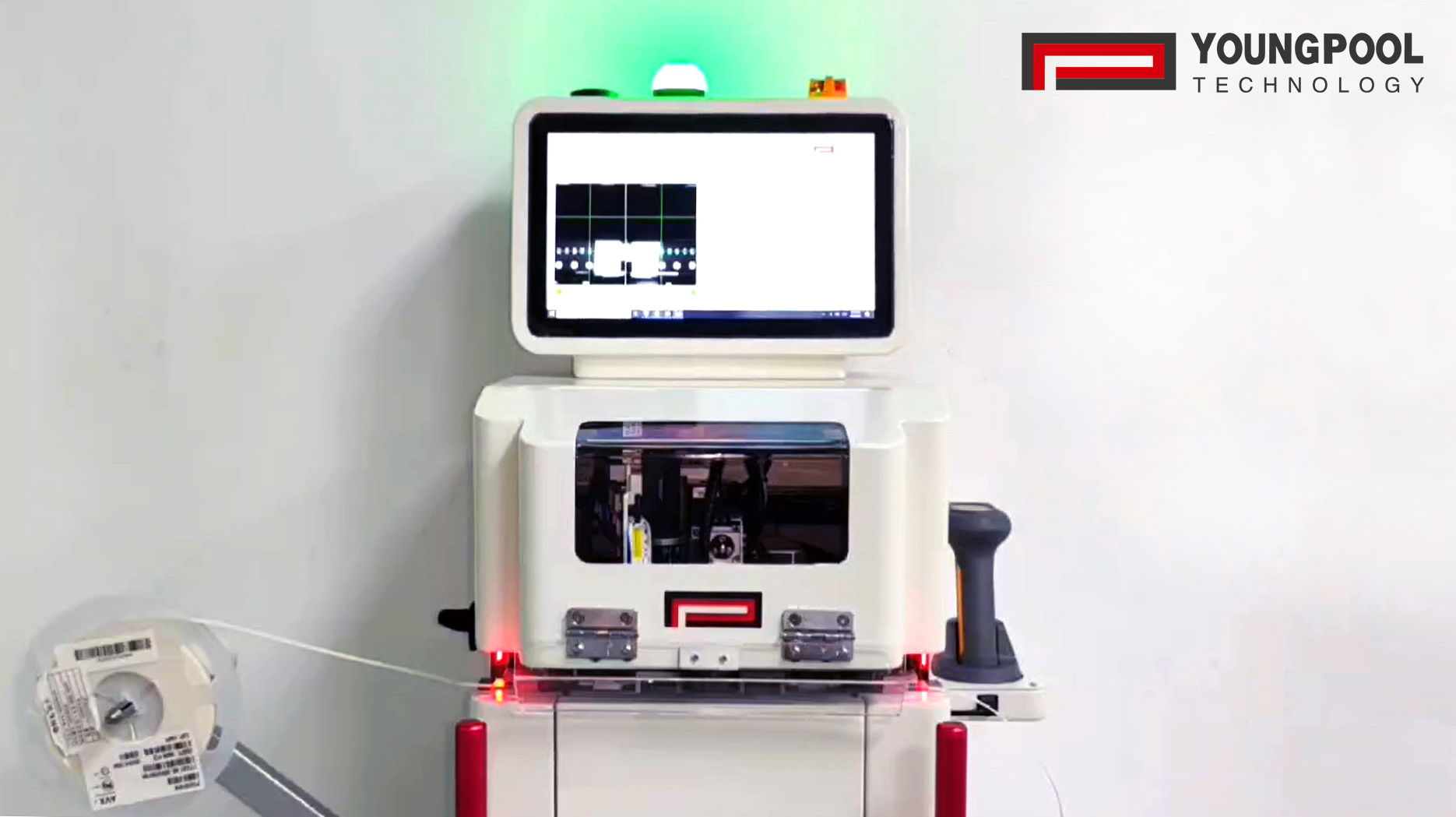

To address this industry challenge, Youngpool Technology has introduced a variable track design in its self-developed L-900 Auto Splicing Machine. This enables direct compatibility with 8, 12, 16, and 24 mm carrier tapes, allowing splicing operations for different tape widths to be completed on a single platform. The core value of this design lies in reducing operational changeovers caused by varying specifications, transforming a process traditionally dependent on operator experience into a standardized, equipment-driven workflow.

In practical operation, the advantage of the variable track design is not limited to multi-spec compatibility, but more importantly reflected in its stability. The L-900 adopts an independent motion architecture for the track system, vision system, and taping module, ensuring consistent operational accuracy across different tape types. Whether handling narrow or wide tapes, operators only need to select the corresponding tape specification on the interface, and the machine will automatically complete alignment and splicing under a unified control logic, thereby minimizing deviations caused by specification differences.

In addition, the Youngpool Auto Splicing Machine is compatible with both paper and embossed (plastic) carrier tapes and supports a maximum pocket depth of 9 mm, enabling it to adapt to the diverse material types commonly found in modern SMT lines. As high-mix production becomes the norm, this level of compatibility helps reduce reliance on manual judgment and intervention, making the splicing process more controllable.

Overall, the value of the variable track design lies not only in expanding the range of compatible materials, but also in optimizing the splicing workflow itself. By consolidating the splicing operations of different tape specifications within a single system, it effectively reduces the impact of human factors on cycle time and quality, aligning the process more closely with the stability requirements of automated production lines. The Youngpool Auto Splicing Machine provides manufacturers with a more continuous and consistent splicing solution.
